Product.Nr. SX-44000
SX-44000 Class D Amplifier
EUR 999,00
incl. 19 % VAT excl. shipping costs
weight 8 kg
product description

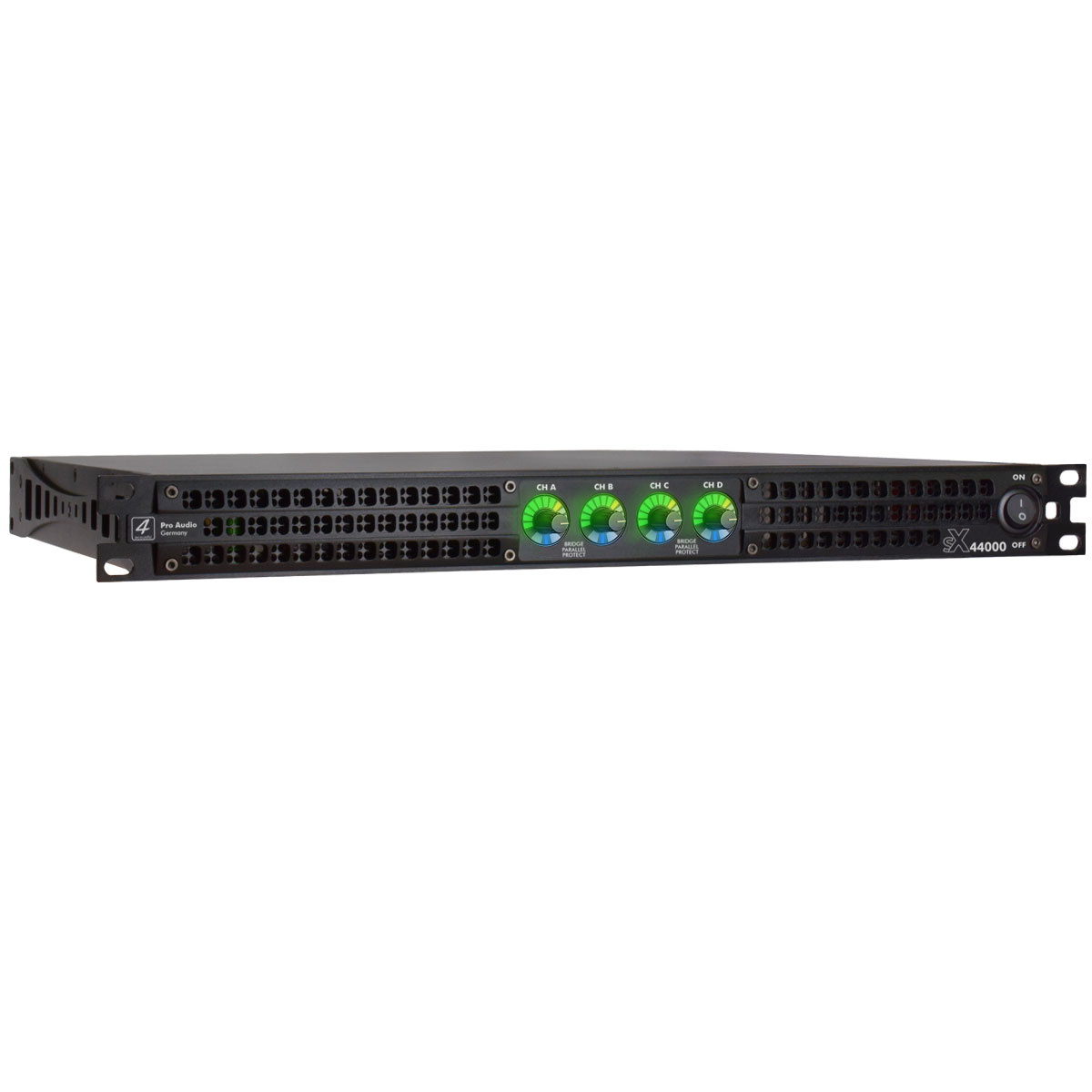

SX-44000 Class D Amplifier
The new SX Series
The new power tool for your sound system
Reliable even under hard touring and stage conditions the SX Series will drive your speaker with pure sound and less distortions. Very low noise temperature-controlled fans make this state of art amplifier series suitable for touring and fixed installations. Powerful up to 4 x 3800 Watt or 2 x 6000 @ 2 Ohm the SX series offer enough power even for huge subwoofer cluster. The digital controlled SMPS power supply offers stable working conditions and high efficiency even under weak or unstable mains supplies. Compact and with a depth of 402 mm the 1U high case weighs only 8,4 Kg. All connectors are original Neutrik. Powercon for the mains connection, NL4 Speakon for the speaker outputs and XLR for the input signals. At the backside are dip switches to select the working mode and input sensitivity. The front panel is equipped with a power switch and multi-function LED displays.
| Model Name | SX-44000 |
|---|---|
| GS1 (EAN) CODE | 4260318512022 |
| System Type | 4-Channel Class D Amplifier |
| Output Power all channels driven 20Hz - 20 kHz, 0.1 % THD |
4 x 2700W @ 2Ohm 4 x 1830W @ 4Ohm 4 x 1100W @ 8Ohm |
| Output Power Bridge mode |
2 x 5000W @ 4Ohm 2 x 3660W @ 8Ohm 2 x 3200W @16Ohm |
| THD+N @ 8Ω 1kHz,1dB | ≤0.05% |
| Slew Rate | >30v/μs |
| Frequency Response @1Watt, 8Ohm |
10Hz -20kHz / ±0.35dB |
| Damping Factor (@100Hz) |
>5000 |
| Signal to Noise Ratio 20Hz -20 kHz |
>99dB |
| Channel Separation Crosstalk@1kHz |
>70dB |
| Voltage Gain | 45.4dB (0,775V:144V) |
| Input Sensitivity | selectable 0.775V/1V/1.4V/2V |
| Input Impedance | 20k Ohm Balanced 10k Ohm Unbalanced |
| Front Control | Power switch, Gain control |
| Rear Control | Sensitivity Switch, Mode Switch |
| LED Indicators | Signal VU Meter Protect, Parallel |
| Input Connectors | XLR Active balanced pin1 gnd / pin 2+ / pin3- |
| Output Connectors | 4 Neutrik NL4 Sockets |
| Cooling | Low Noise Continuously Variable speed fan |
| Protection | Full short circuit, Open circuit, thermal, Ultrasonic, RF Protection. Stable Into reactive or Mismatched loads |
| Load Protection | On/Off muting DC fault power Supply shutdown |
| Operating Voltage | 230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz |
| Idle Power Consumption |
< 130W |
| Max. Power Consumption |
< 4000W |
| Fuse | T-25A |
| Dimensions (h/w/d) | 19“/1U 483W x 402D x 44H |
| Net weight | 8,4 kg |
